Slate Stone Veneer can be glued to surfaces using most standard laminate adhesives having a thick body or foaming quality. Prior to application of the glue clean, brush and de-grease the receiving surface or dust, oils or any other contaminants. In same installations, and depending upon the adhesive used, it may be necessary to prepare the back of the thin Slate Stone veneer with solvent or recommended primer by the adhesive manufacture. We recommend making a test area with any adhesive prior to final application.
|
 |
|
| |
 |
STRUCTURE & BACKING |
|
| |
| |
|

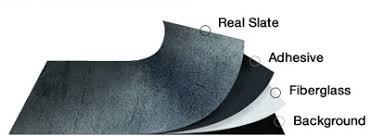

Thin Slate Stone is a Natural Stone Veneer lamination with smooth black backing. It is produced with a fleece backing in black color having a seam in the middle which appear when the light is passed through it.
|
| |
|
COLOR VARIATIONS |
|
| |
| |
|
Thin Slate Stone Veneer is a Natural Stone Veneer, color & texture variations are the property of the material. Texture variations with color difference are a inherent part of the natural beauty of quarried material. Stone Veneer cannot be guaranteed to match with each Lot, it is recommended that material should be accepted in lots of 20, 40, 50 sheets to match. Large orders will be executed in bundles of 50 with 2-3 matching lots in each bundle. Exceptions of large lots are also a possibility.
|
| |
|
TOOLS FOR CUTTING |
|
| |
| |
|
Diamond blades used for marble & stone cutting can be used for cutting Thin Slate Stone Veneer. Metal cutting tools also can be used to cut the Stone Veneer. Any standard carbide or diamond saw blades would work just as well.
|
| |
|
CURVATURE & BENDING |
|
| |
| |
|
Thin Slate Stone Veneer can be bent with same flexibility as any plastic sheet product. The backing used gives it enough strength and flexibility. Thin Slate Stone Veneer can be bent in concave & convex forms, or arched or radial forms depending on the nature of curve. Thin Slate Stone Veneer can be bent or flexed to a radius of 380mm along the 1200mm length. The 600mm width will also have a slight flex to it, but is not recommended for bending. Due to the nature of the different thickness of the individual items, the degree of radius varies per item. We recommend testing the flex of the considered item prior to final installation.
|
| |
|
STRUCTURE & BACKING |
|
| |
| |
|
This product is innovative and great with architects and contractors and is something that you would want to try. It makes walls look beautiful or can be combined with different elements creating a very unique design. It is so simple to install that you will be astounded.
|
| |
|
ADHESIVES |
|
| |
| |
|
Knowledge of the special adhesives, and the respective surface for which they are recommended, is critical in obtaining superior installation when using Thin Slate Stone veneer. We recommend testing the selected adhesive prior to proceeding with installation. Humidity and temperature of the environment is to be evaluated first. If the application is outdoors, consideration to thermal expansion should be taken into account. Thin slate Stone is a veneer, it must expand and contract which is recommended by the adhesive manufacturer, the bond must be tested by the installer prior to final installation. Recommended types of adhesives & fillers:
|
| |
 |
Polyester-based gap filler putties |
|
Epoxies |
|
Silicone (with primer only) |
|
Polyurethane wood glues |
|
Thick latex-type adhesive, thin set etc. (uses only where air-drying can take place) |
|
Construction grade multi-purpose adhesives (eg. Liquid Nails or PL Premium Polyurethane or similar) |
|
| |
|
PRESSING |
|
| |
| |
|
Stone-Veneer has a natural, rough split surface with a tolerance of up to 2 mm. Thickness equalizing additions protect the veneers from being damaged. Proven are 7 mm thick rubber plates with a shore grade of 50 and a temperature Resistance of at least +/- 80® C. It is important that the rubber matt has an insulating effect, so that the press time can be therefore extended. Pending on the adhesive type and press temperature of 80® C, press time approximately 6 minutes. Depending on the press configuration, the pressure has to be carefully set.
|
| |
|
TILING |
|
| |
| |
|
Thin Slate Stone Veneer can be used to create a tiled effect by leaving a grout joint between cut pieces of material. Test results have shown the use of water-based epoxy grouts work well to fill between the cut veneers. By removing the material just under the grout joint, a deeper grout can be achieved if desired. Epoxy grouts are available in many colors to match or co-ordinate with the different colors of Thin Slate Stone. On final clean up of the epoxy with a sponge, the epoxy can also be used to seal and fill the Thin Slate Stone surface. It is recommended in this installation that the entire surface of the Thin Slate Stone be sealed with epoxy as a final step to ensure complete satisfaction.
|
| |
|
SEALERS |
|
| |
| |
|
Thin Slate Stone Veneer can be sealed in the similar manner as most slate and / or stone tiles are sealed. Please follow manufacturers instructions for best results. As sealants are offered in varying degrees of luster or sheen, we recommended that you confirm the reflectance prior to complete installation to get the desired effect.
|
| |
|
USES FOR LAMINATION & DIRECT GLUING |
|
| |
| |
|
Thin Slate Stone is used for wall panel on MDF, HDF boards application, furniture, woodworking machines, round column cladding and numerous interior and exterior applications. Thin slate stone veneer is also recommended for flooring or counter top applications after sealing the surface of the stone veneer with epoxy sealers to avoid scratches & abrasion. Polyurethane sealers can also be used if stone veneer is used for domestic applications. Stone Veneer can directly be glued to concrete floors and walls with the help of epoxy and other PU glues Thin Slate Stone Veneer may be used in illumination application such as lamp shades or back light applications as translucent material or the other translucency applications.
|
| |
|
LIGHT, HEAT & TEMPERATURE RESISTANCE |
|
| |
| |
|
Stone Veneer has natural stone surface layer surface which acts as a UV light or UV rays protector and will resist high sun conditions for years. When it is glued to a substrate, Slate Stone veneer will handle high thermal contraction and or expansions of most standard construction materials. Thin Slate Stone Veneer will handle both high temperatures and freezing without cracking.
|
| |
|
SUBSTRATES |
|
| |
| |
|
Thin Slate Stone can be applied to Styrofoam sheets, melamine, concrete, brick, concrete blocks & slabs, mortar plastered walls, drywall, plywood, acrylic and other plastic sheets.
|
| |
| |
| |
